Electric/pneumatic diaphragm double-seated control valve
The pneumatic diaphragm double-seated regulating valve adopts a double-guided structure and is equipped with a multi-spring actuator. It has the advantages of compact structure, light weight, sensitive action, large valve capacity, precise flow characteristics, and convenient disassembly and assembly. It is widely used in the precise control of gases, liquids, and steam, and process parameters such as pressure, flow rate, temperature, and liquid level are maintained at the set value. It is especially suitable for occasions with large pressure differences and relatively large allowable leakage, and for not-so-clean media. <br/> This series of products includes standard types, bellows sealed types, jacketed insulated types, high-temperature types, and other varieties. The nominal pressure ratings of the products are PN16, 25, 40, 64; the valve body diameter range is DN25~450. Applicable fluid temperatures range from -250℃ to +560℃ in various grades. The leakage standard is Class Ⅱ and Class Ⅲ. Soft sealing can reach Class V; the flow characteristics are linear or equal percentage. A wide variety of specifications are available.
Keyword:
- Product Description
-
The pneumatic diaphragm double-seated regulating valve adopts a double-guided structure and is equipped with a multi-spring actuator. It has the advantages of compact structure, light weight, sensitive action, large valve capacity, accurate flow characteristics, and convenient disassembly and assembly. It is widely used in the precise control of gases, liquids, and steam, and process parameters such as pressure, flow rate, temperature, and liquid level are maintained at the set value. It is especially suitable for occasions with large pressure differences and relatively large allowable leakage, and for not very clean media.
This series of products has a variety of types, including standard type, bellows sealed type, jacketed insulated type, and high-temperature type. The nominal pressure levels of the products are PN16, 25, 40, 64; the valve body diameter range is DN25~450. The applicable fluid temperature is in the range of -250℃~+560℃. The leakage standard is Class Ⅱ and Class Ⅲ. Soft sealing can reach Class V; the flow characteristics are linear or equal percentage. A wide variety of models and specifications are available.

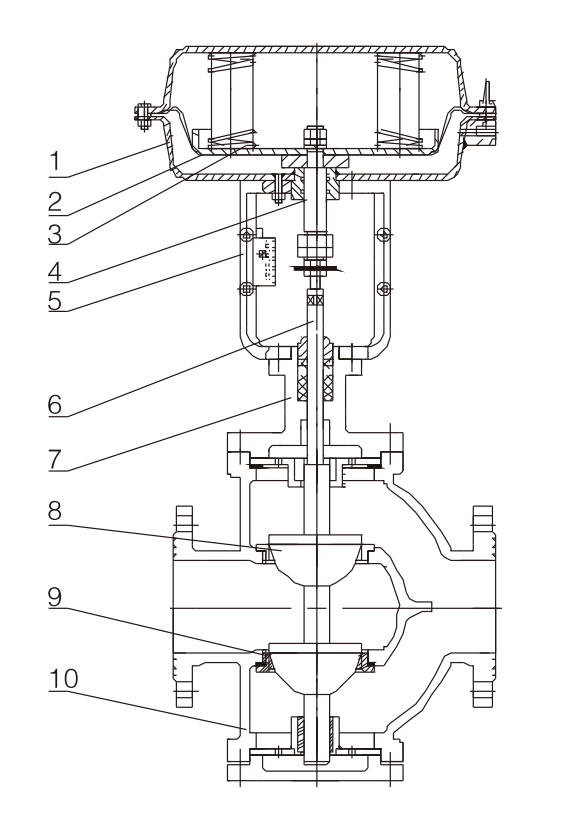

1. Diaphragm cover 2. Diaphragm 3. Spring 4. Push rod 5. Bracket valve stem 7. Valve cover 8. Valve core 9. Valve seat 10. Valve body
Features:
Top and bottom double-guided double-seated regulating valve, good stability during operation.
With two valve cores and valve seats, using a "four-way" valve body can be easily converted from positive installation to reverse installation, and the air-closing valve can be changed to an air-opening valve.
The valve body is designed with an equal-section low-resistance flow path according to fluid dynamics principles, and has a large rated flow coefficient.
Small unbalanced force, allowing for larger pressure difference.
The actuator adopts a multi-spring mechanism, reducing the height by 30% and the weight by 30%.
Large adjustable range, inherent adjustable ratio is 50:1.
Metal valve cores are suitable for various working conditions, and soft-sealed valve cores reach Class Ⅵ leakage standard.
The bellows sealed regulating valve completely seals the moving valve stem, preventing fluid leakage.
The regulating valve is equipped with an insulation jacket for use in situations where fluid cooling can easily cause crystallization and solidification, leading to blockage.
Low-temperature type is used in low-temperature and cryogenic applications.
High-temperature type (450~560℃)
Heat dissipation type (-60~450℃)
Keyword:
Benefiting from all the advantages of the 1ZQ actuator, the IZQ+VE features a linear output transmission system, with adjustable thrust output up to 100KN
IZQ-Multi-turn Actuator Model 18-40
Advanced intelligent non-invasive electric valve actuators, offering multi-turn, partial-turn, and linear stroke options.
Part of the IZQ+BW rotary actuator
The IZQ+BW actuator is based on the IZQ multi-turn actuator with a secondary deceleration stage, enabling 90° opening and closing of large-diameter, high-torque butterfly valves, ball valves, etc., with a torque range of 1000Nm~63000Nm
