Self-acting temperature control valve
Self-acting temperature control valve, using the change of the temperature of the controlled medium itself for adjustment. The temperature control range is from 20~100℃, with a wide temperature setting range and overheat overload protection measures. The temperature setting is convenient, indicated by a temperature dial during setting, and can be continuously set during operation. <br/> Widely used in petroleum, chemical, dyeing, pharmaceutical and other industrial sectors, as well as urban heating and heating systems.
Keyword:
- Product Description
-
Self-acting temperature control valve, using the change of the temperature of the controlled medium itself for adjustment. The temperature control range is from 20~100℃, with a wide temperature setting range and overheat overload protection measures. The temperature setting is convenient, indicated by a temperature dial during setting, and can be continuously set during operation.
Widely used in petroleum, chemical, dyeing, pharmaceutical and other industrial sectors, as well as urban heating and heating systems.

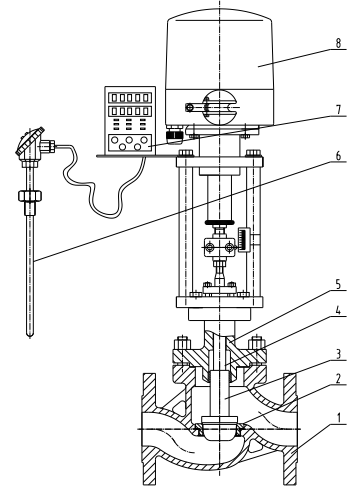

1. Valve body 2. Valve seat 3. Valve core 4. Valve stem 5. Valve cover 6. Temperature sensor 7. Temperature controller 8. Electric actuator
Working principle:
Standard type: The temperature bag is filled with expansion liquid, acting on the metal bellows and needle rod inside the operating element. The liquid volume changes depending on the temperature change.
This causes the bellows and valve core to move together. The valve proportionally adjusts according to the temperature change, thus achieving automatic temperature control.
Electrically controlled type: The setpoint temperature is transmitted to the intelligent temperature control electric actuator via a temperature-sensitive element. After comparing with the set temperature, the actuator generates an axial movement, driving the stem and valve core to produce linear displacement, achieving automatic valve adjustment and thus automatic temperature control. The set temperature can be adjusted on-site.
