Product
Insulation gate valve
Insulation gate valve
Keyword:
- Product Description
-

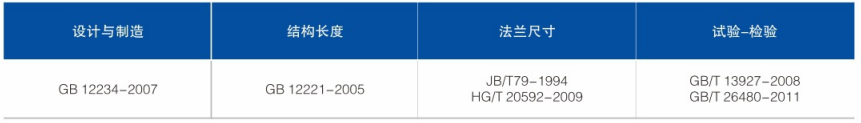

Execution standard

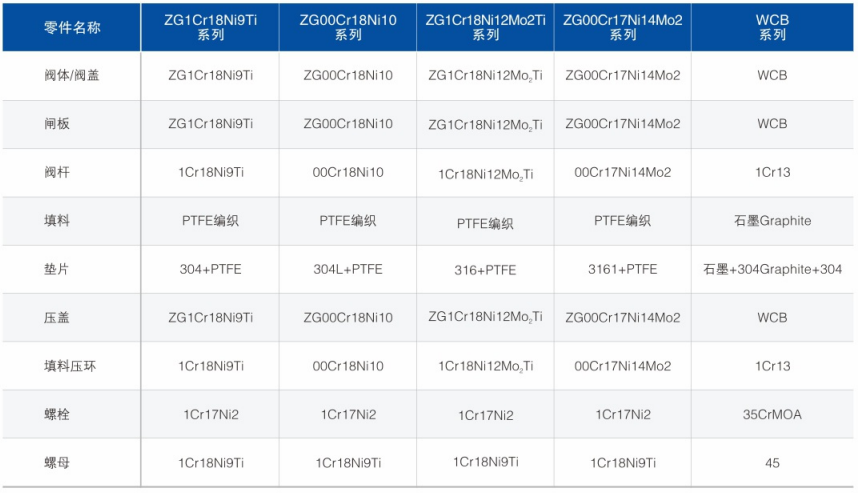

Main part materials

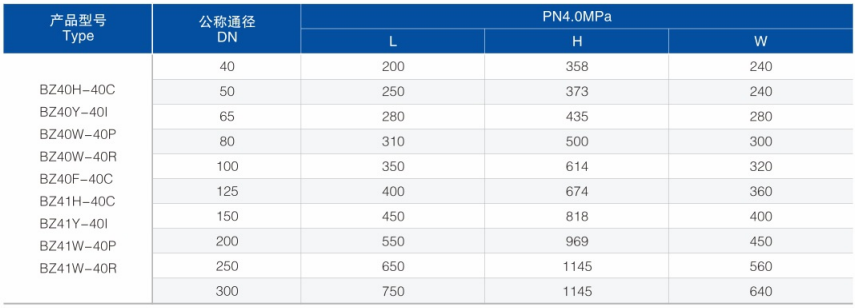

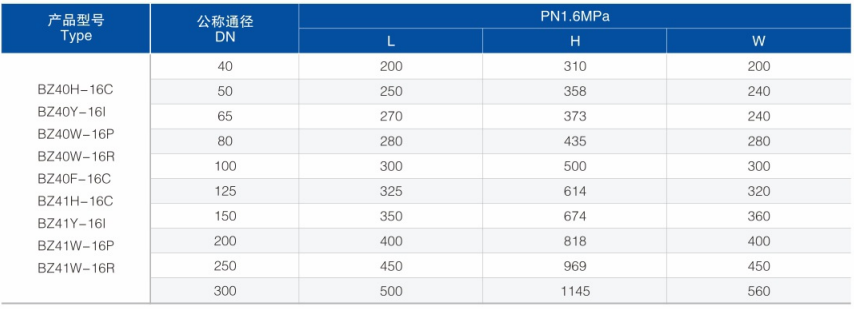

Main shape and connection dimensions
※Note: The connection dimensions for manual, pneumatic, hydraulic, and electric are the same; in addition, our company can customize non-standard sizes, other standards, and products of special materials according to customer requirements
Keyword:
Benefiting from all the advantages of the 1ZQ actuator, the IZQ+VE features a linear output transmission system, with adjustable thrust output up to 100KN
IZQ-Multi-turn Actuator Model 18-40
Advanced intelligent non-invasive electric valve actuators, offering multi-turn, partial-turn, and linear stroke options.
Part of the IZQ+BW rotary actuator
The IZQ+BW actuator is based on the IZQ multi-turn actuator with a secondary deceleration stage, enabling 90° opening and closing of large-diameter, high-torque butterfly valves, ball valves, etc., with a torque range of 1000Nm~63000Nm
