API standard pressure balanced inverted oil seal globe valve
The American standard pressure balanced inverted oil-sealed plug valve is suitable for pipelines in various working conditions in the petroleum, chemical, pharmaceutical, fertilizer, and power industries, with a nominal pressure of CLASS150~1500LBS and an operating temperature of -29~180℃, to cut off or connect the pipeline medium.
Keyword:
- Product Description
-

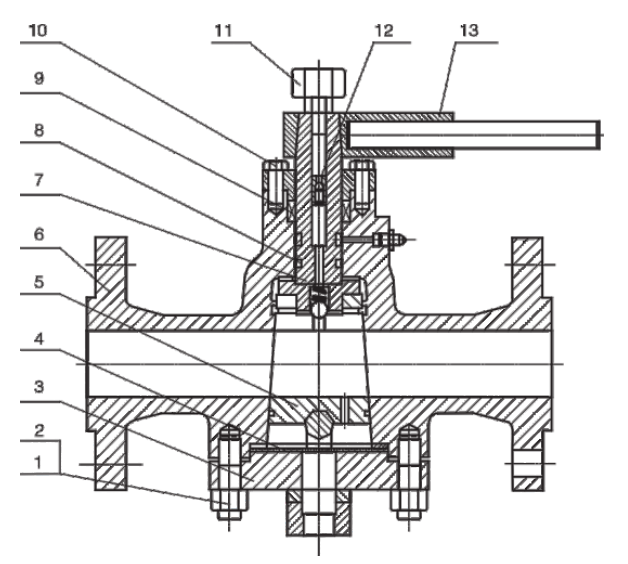

Product Structure Features:
American standard pressure balanced inverted oil-sealed globe valves are suitable for pipelines in various working conditions in the petroleum, chemical, pharmaceutical, fertilizer, and power industries with nominal pressures of CLASS150~1500LBS and operating temperatures of -29~180℃, to cut off or connect pipeline media.
Its main structural features:
1. Reasonable product structure, reliable sealing, excellent performance, and beautiful appearance;
2. Inverted pressure balancing structure, light switching action;
3. An oil groove is provided between the valve body and the sealing surface, and sealing grease can be injected into the valve seat through the oil nozzle at any time to enhance the sealing performance; 4. The material of parts and flange dimensions can be reasonably selected according to the actual working conditions or user requirements to meet the needs of various projects.
Technical Specifications:

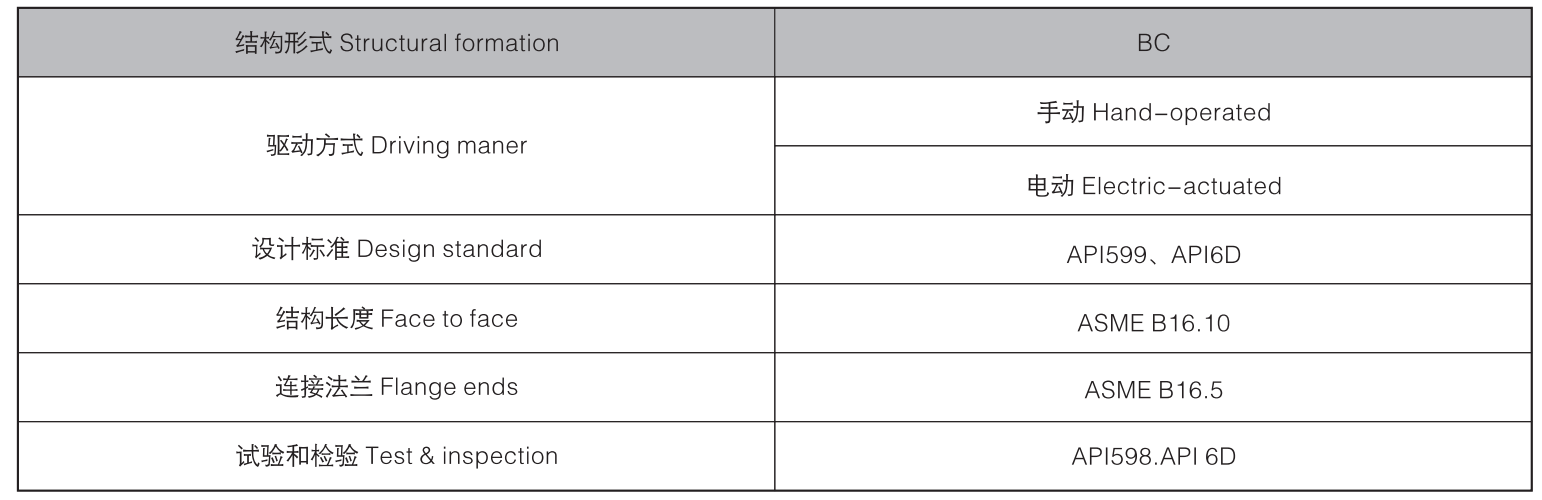

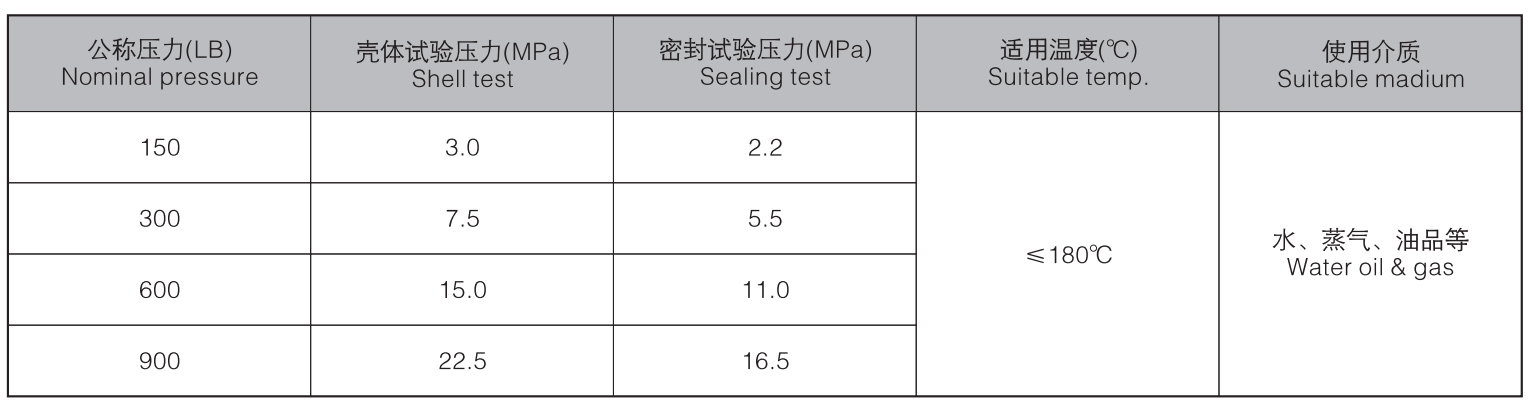

Product Performance Specifications:

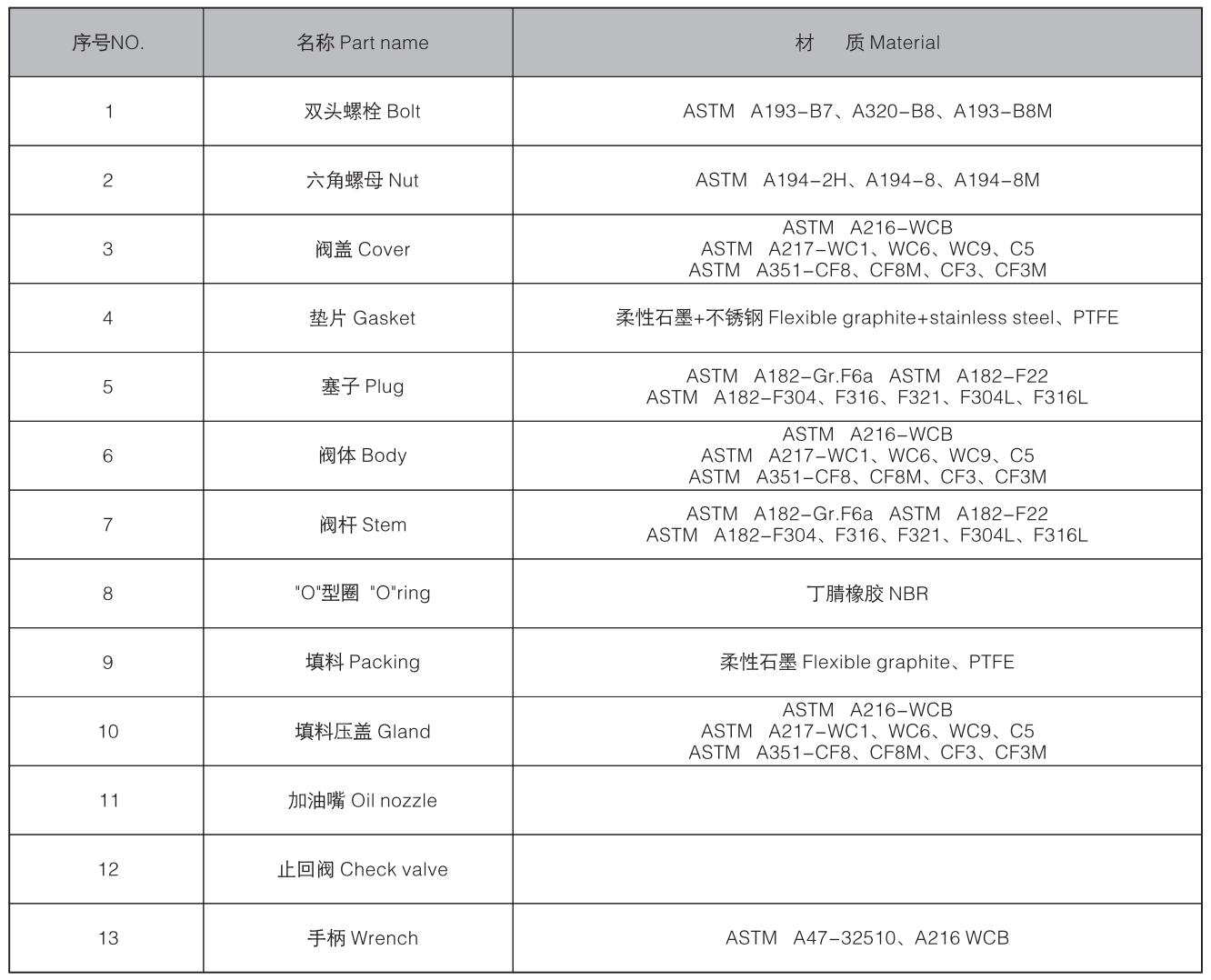

Main Component Materials:

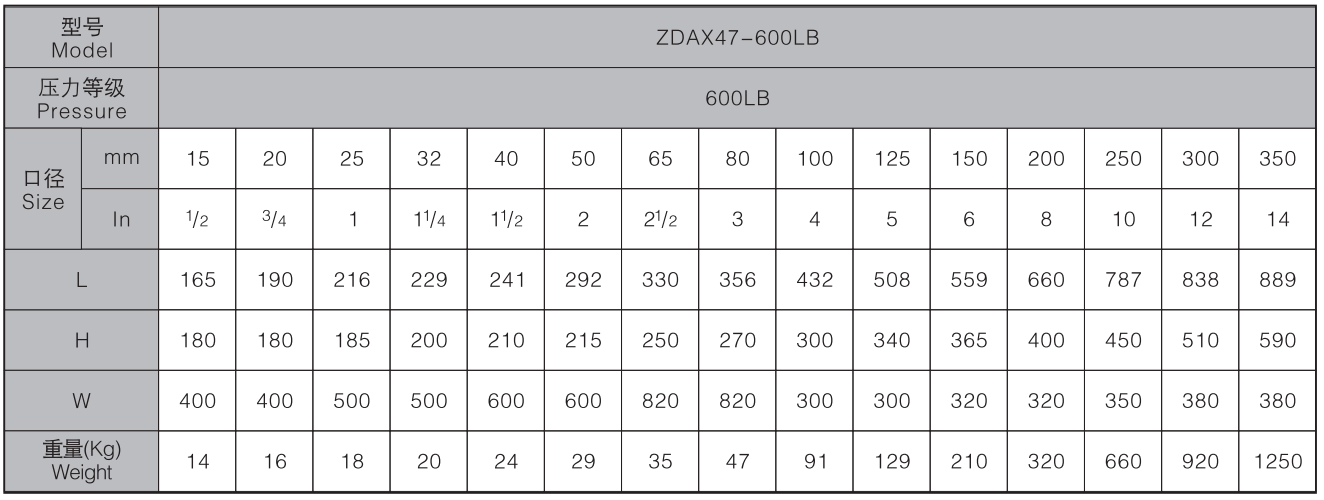

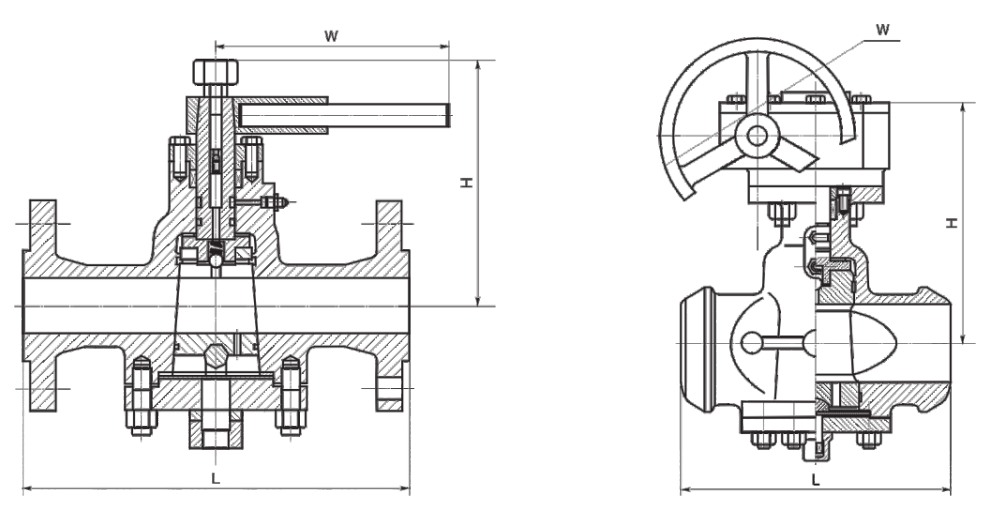

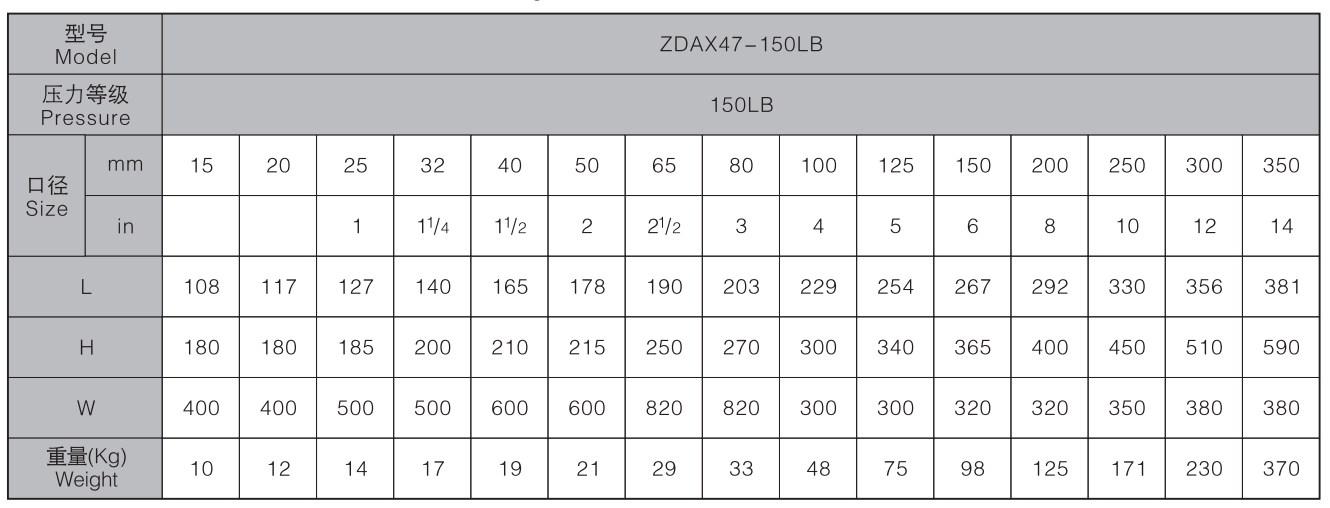

Main Dimensions and Weight:
Note: 4 inches and above are worm gear operation
Note: 4 inches and above are worm gear operation

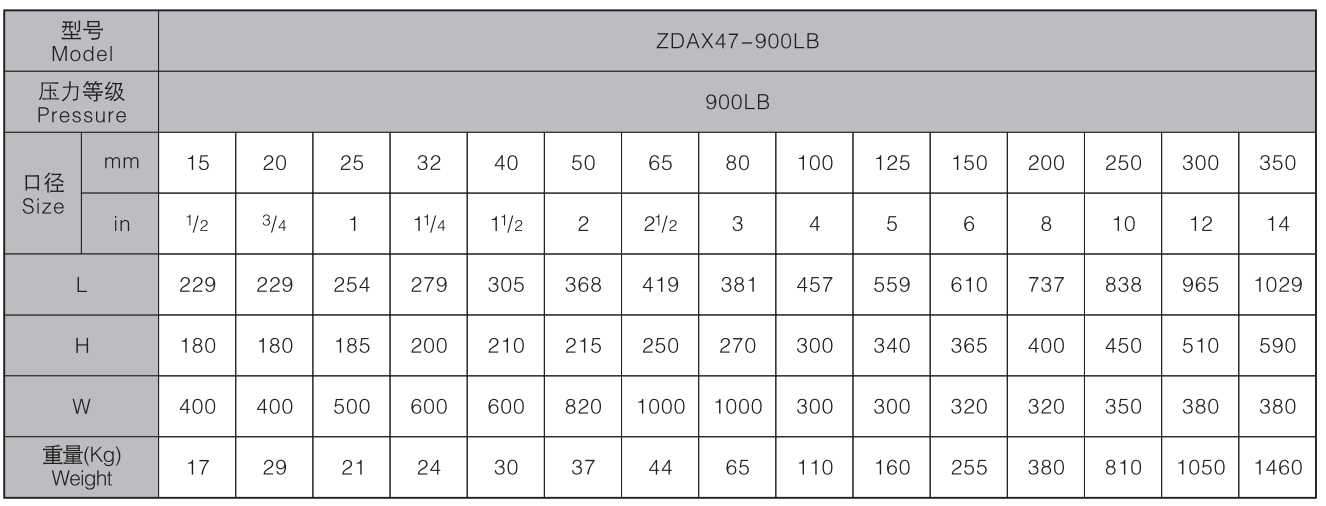

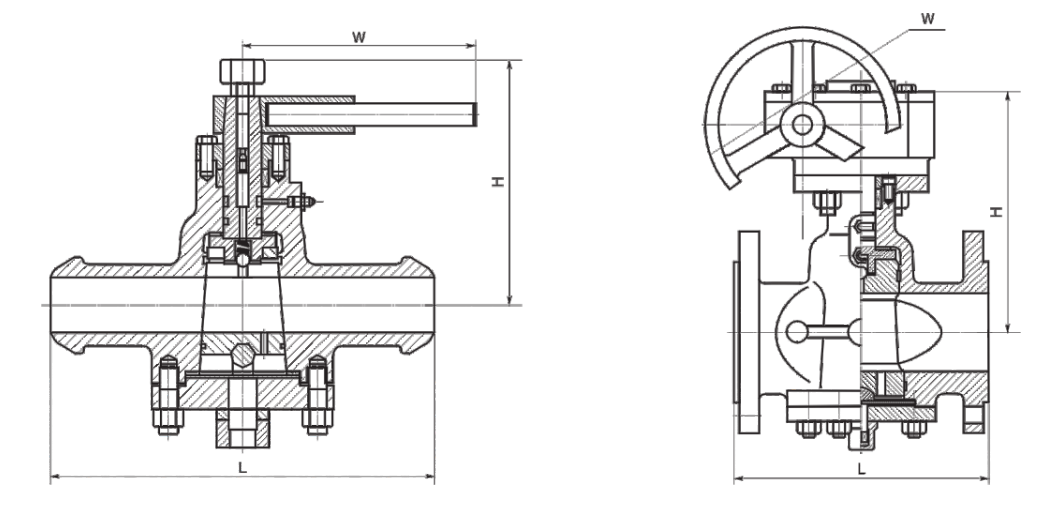

Main Dimensions and Weight:
Note: 4 inches and above are worm gear operation
Note: 4 inches and above are worm gear operation
