American standard card sleeve soft seal globe valve
The American standard union bonnet soft seal globe valve is suitable for pipelines with nominal pressures of CLASS150-900LBS and operating temperatures of -29-180℃ in various working conditions such as petroleum, chemical, pharmaceutical, fertilizer, and power industries, to cut off or connect pipeline media.
Keyword:
- Product Description
-
Product Structure Features:
American standard compression soft seal globe valves are suitable for pipelines in various working conditions in the petroleum, chemical, pharmaceutical, fertilizer, and power industries with nominal pressures of CLASS150-900LBS and operating temperatures of -29-180℃, cutting off or connecting pipeline media.
Its main structural features:
1. Reasonable product structure, reliable sealing, excellent performance, and beautiful appearance.
2. Its sealing is achieved through the sealing surface around the compression fitting. Unique 360° metal lip edge protects and secures the compression fitting.
3. The valve has no cavity for media accumulation.
4. The metal lip edge provides a self-cleaning function during valve rotation, suitable for viscous and fouling working conditions.
5. Bidirectional flow, more convenient installation and use.
6. Parts materials and flange dimensions can be reasonably selected according to actual working conditions or user requirements. Meet various engineering needs.

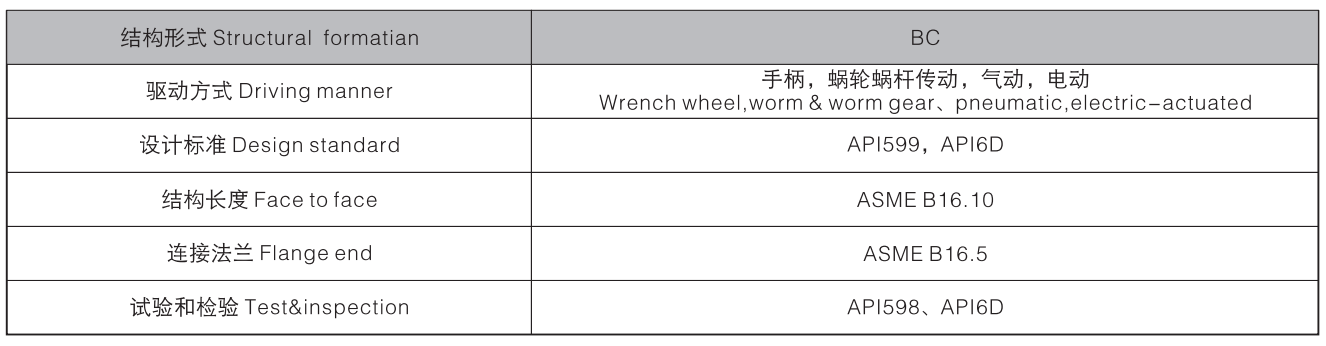

Technical Specifications:
Note: Valve connection flange dimensions are designed and manufactured according to user requirements.

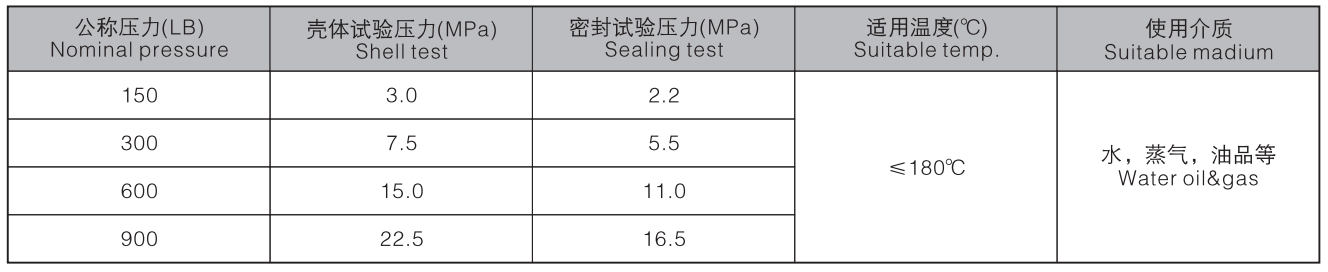

Product Performance Specifications:

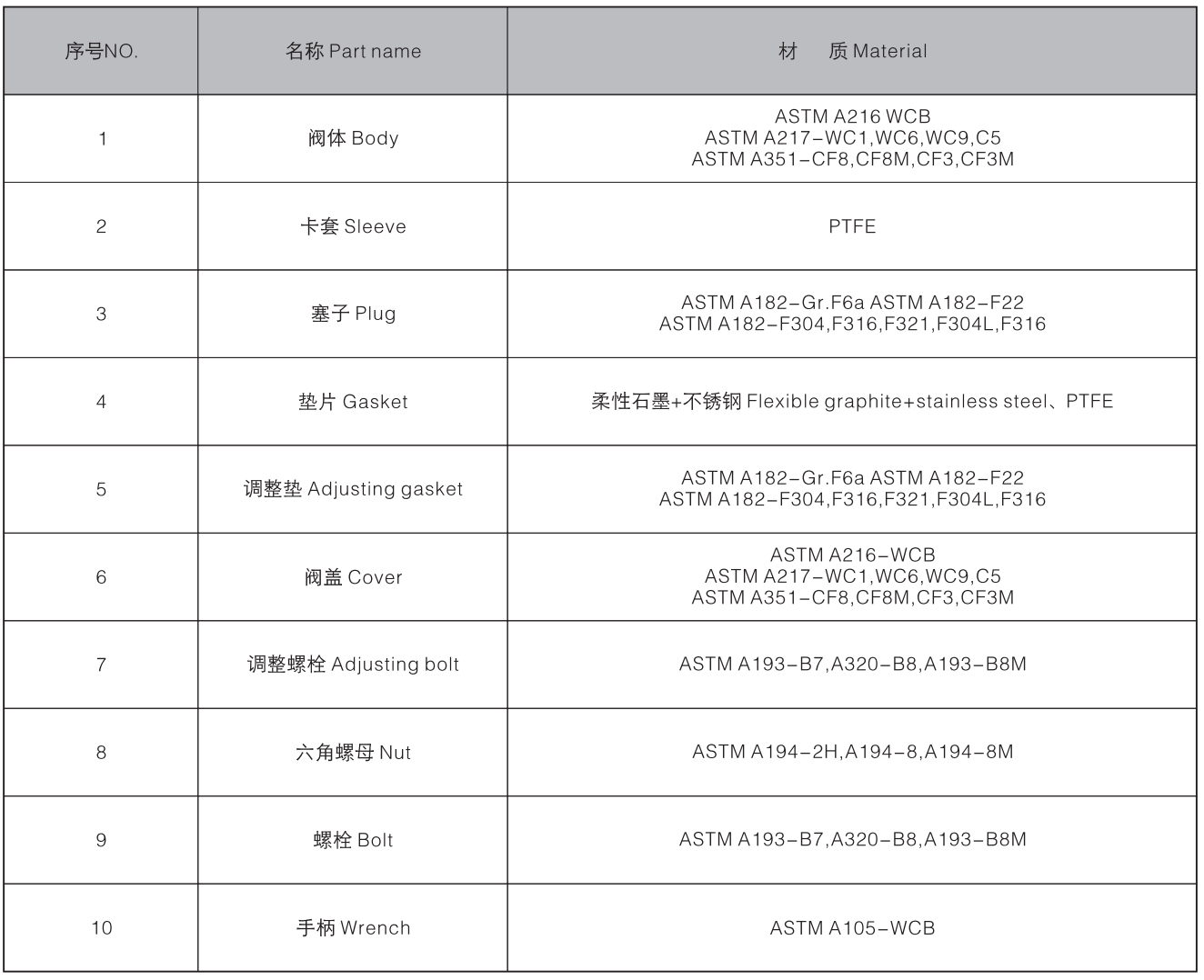

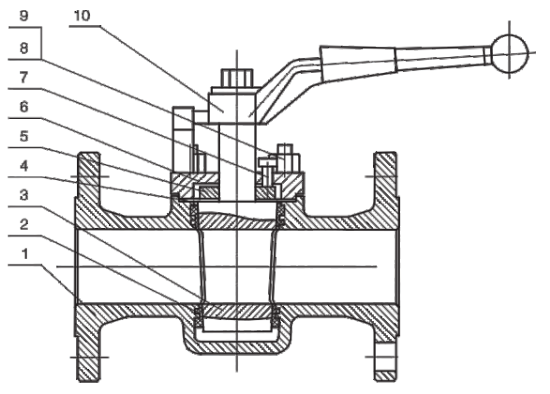

Main Component Materials:

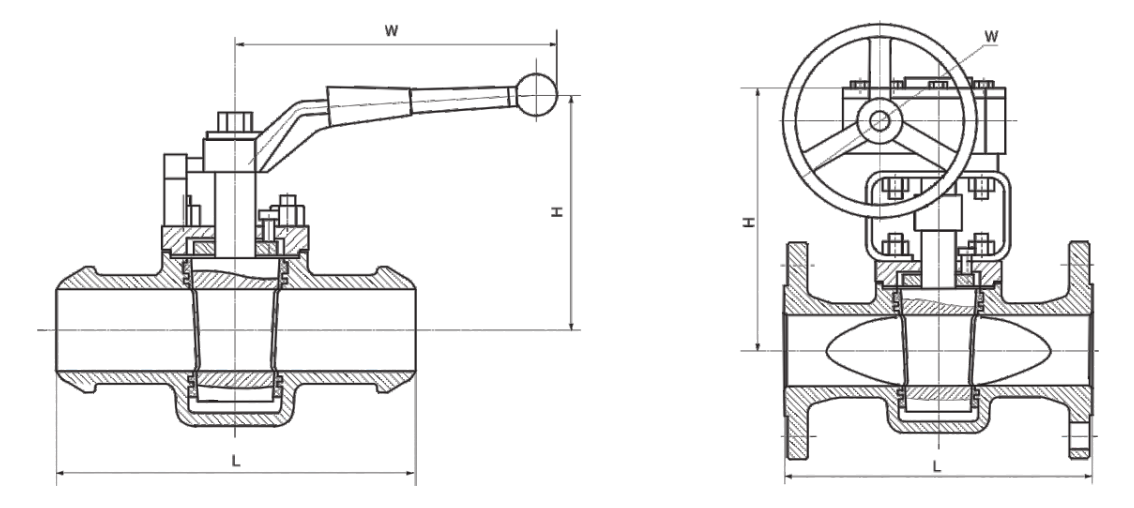

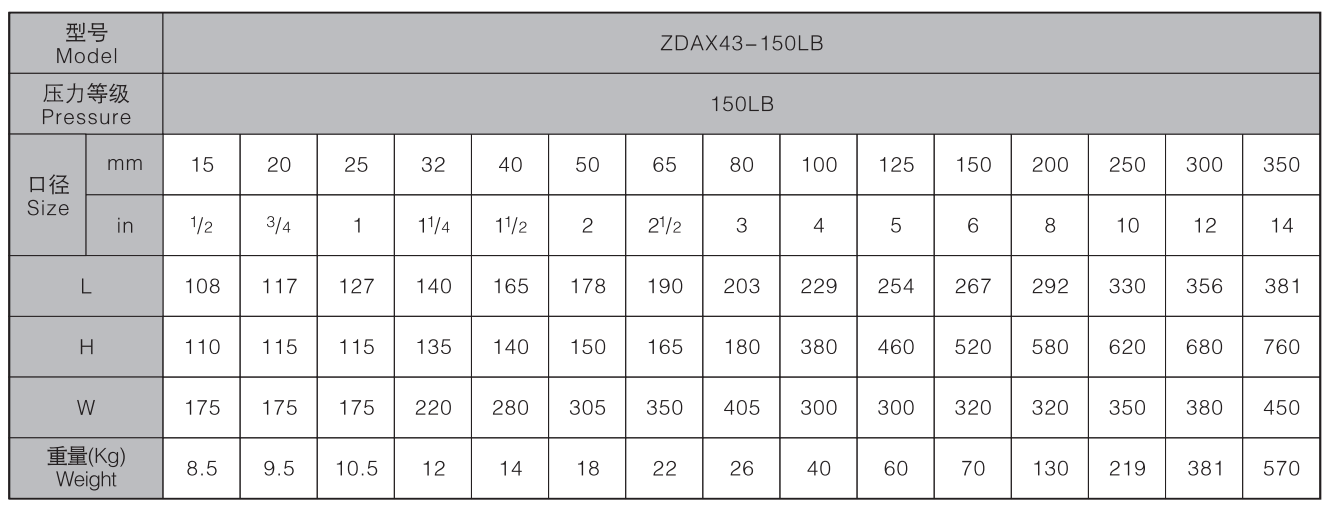

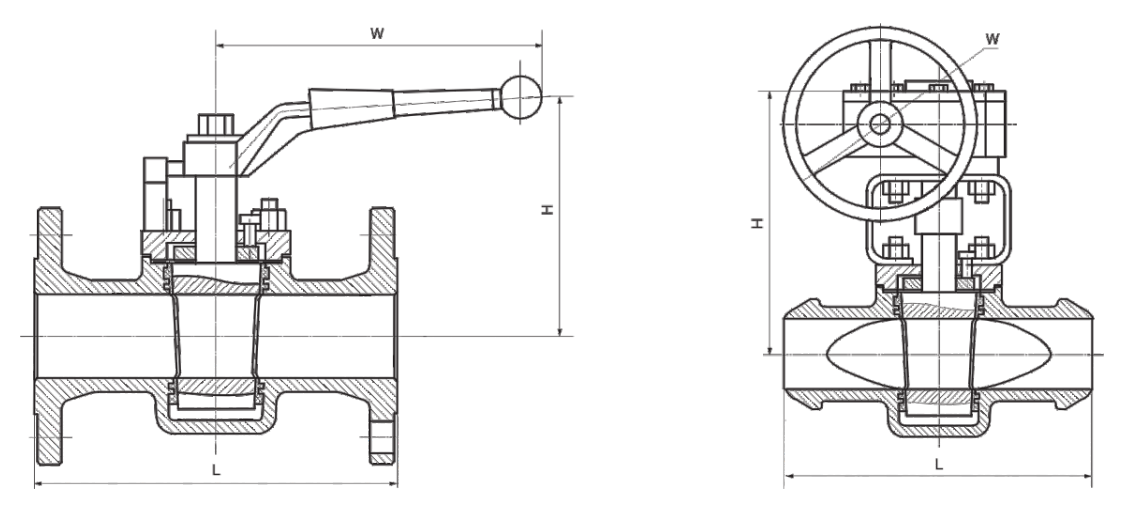

Main Dimensions and Weight:
Note: 4 inches and above are worm gear operation
Note: 4 inches and above are worm gear operation

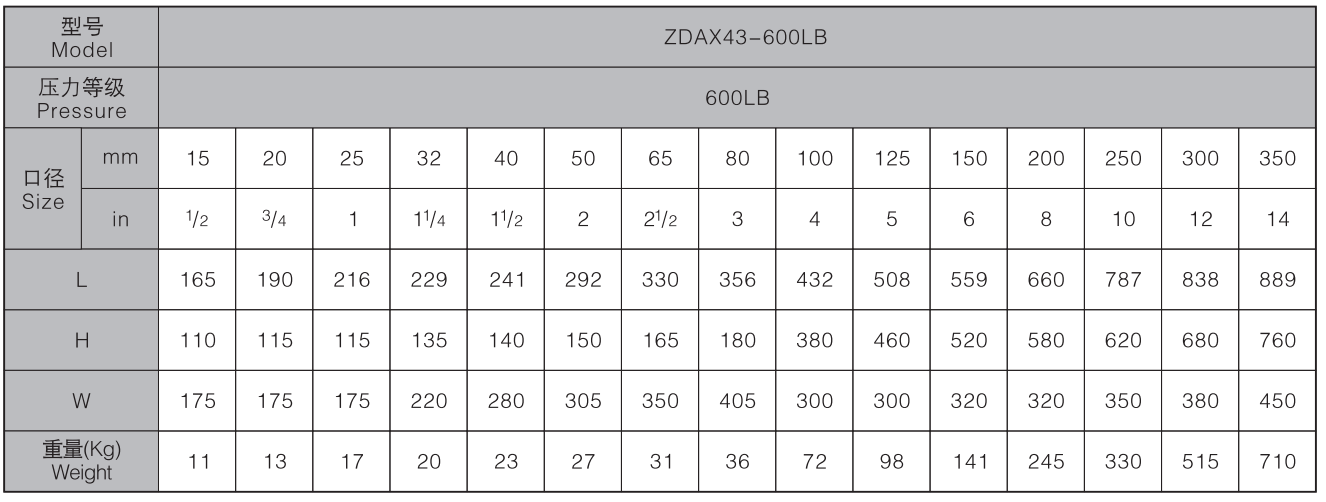

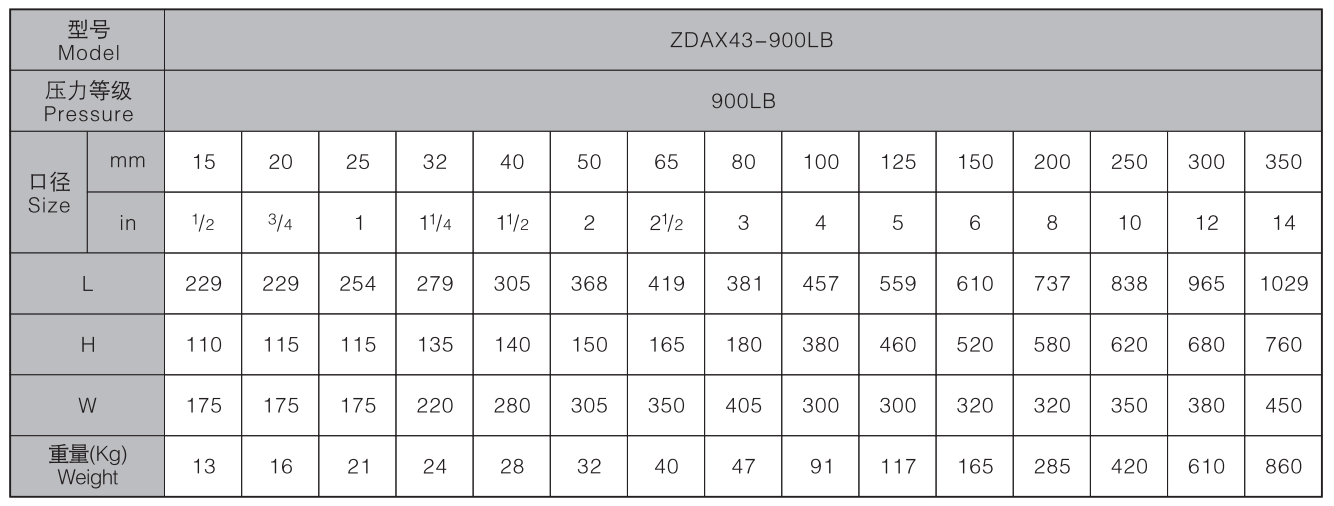

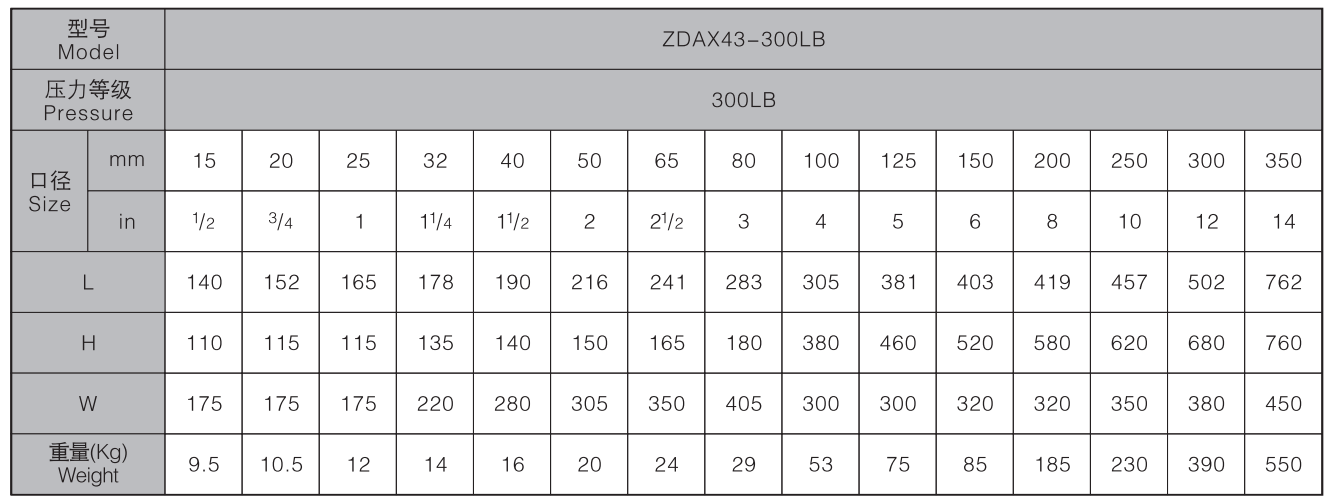

Main Dimensions and Weight:
Note: 4 inches and above are worm gear operation
Note: 4 inches and above are worm gear operation
