Eccentric plug valve
Keyword:
- Product Description
-
Main structural features:
1. Double eccentric design, low friction opening and closing, ensuring zero leakage.
2. Contains 90% nickel, 3mm thick weld-deposited valve seat, or high-performance resin valve seat, which can meet various corrosion resistance requirements. 3. V-shaped combined sealing ring, which can be replaced without removing the actuator.
4. Sealant injection port design, which can extend the service life of the valve.
5. The valve bearing is made of self-lubricating material, no need to add grease, and the wear on the valve shaft is very small. 6. The plug is molded with hot-wrapped rubber, eliminating concerns about rubber shedding and erosion.
7. The valve cover and valve body are sealed with O-rings, reducing the number of bolts and facilitating maintenance. 8. Ideal linear curve, can be used as a control valve.
9. Provides pressure gauge connections at the valve inlet and outlet for easy user control and flow measurement.
10. Straight-through flow path, cylindrical valve body design, sediment is not easy to accumulate.
11. Opening display and opening memory for easy user operation.
12. Manual, electric, and pneumatic actuators can be configured.

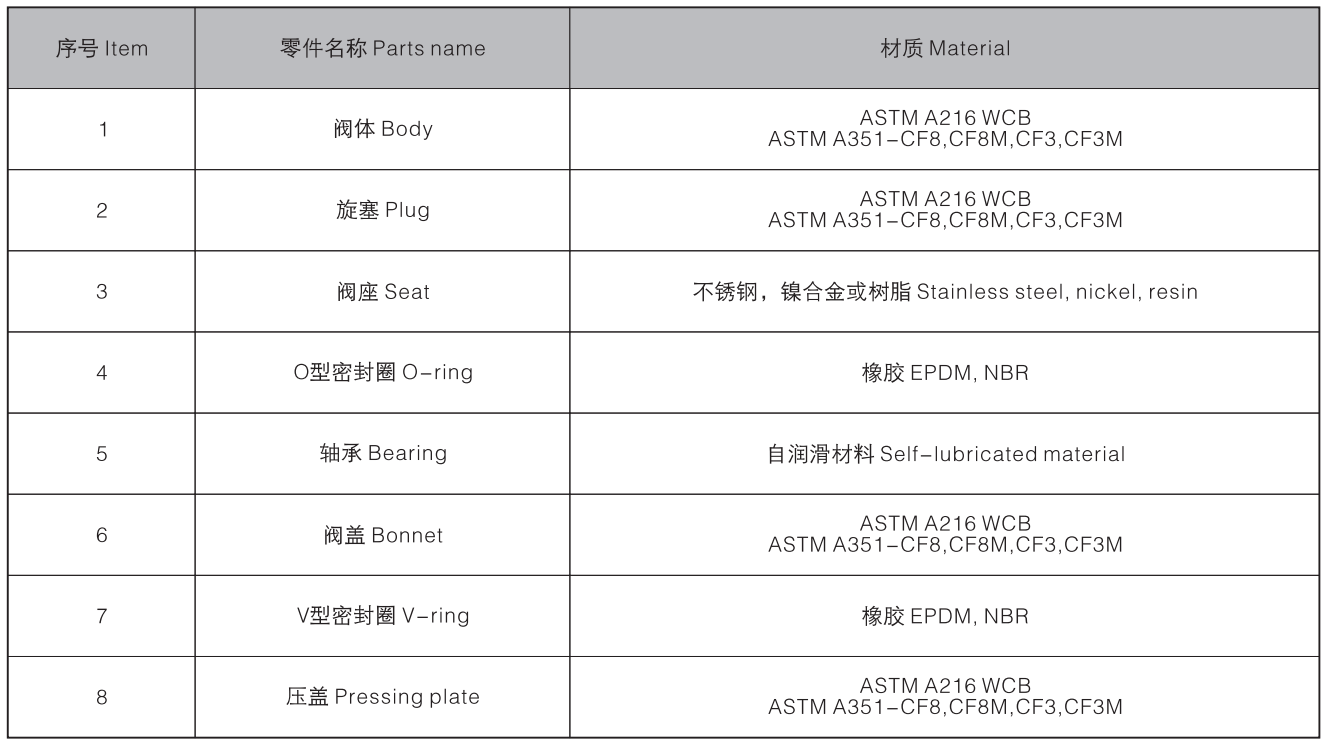

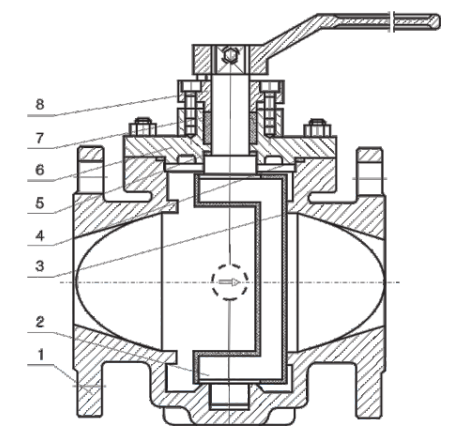

Main component materials:

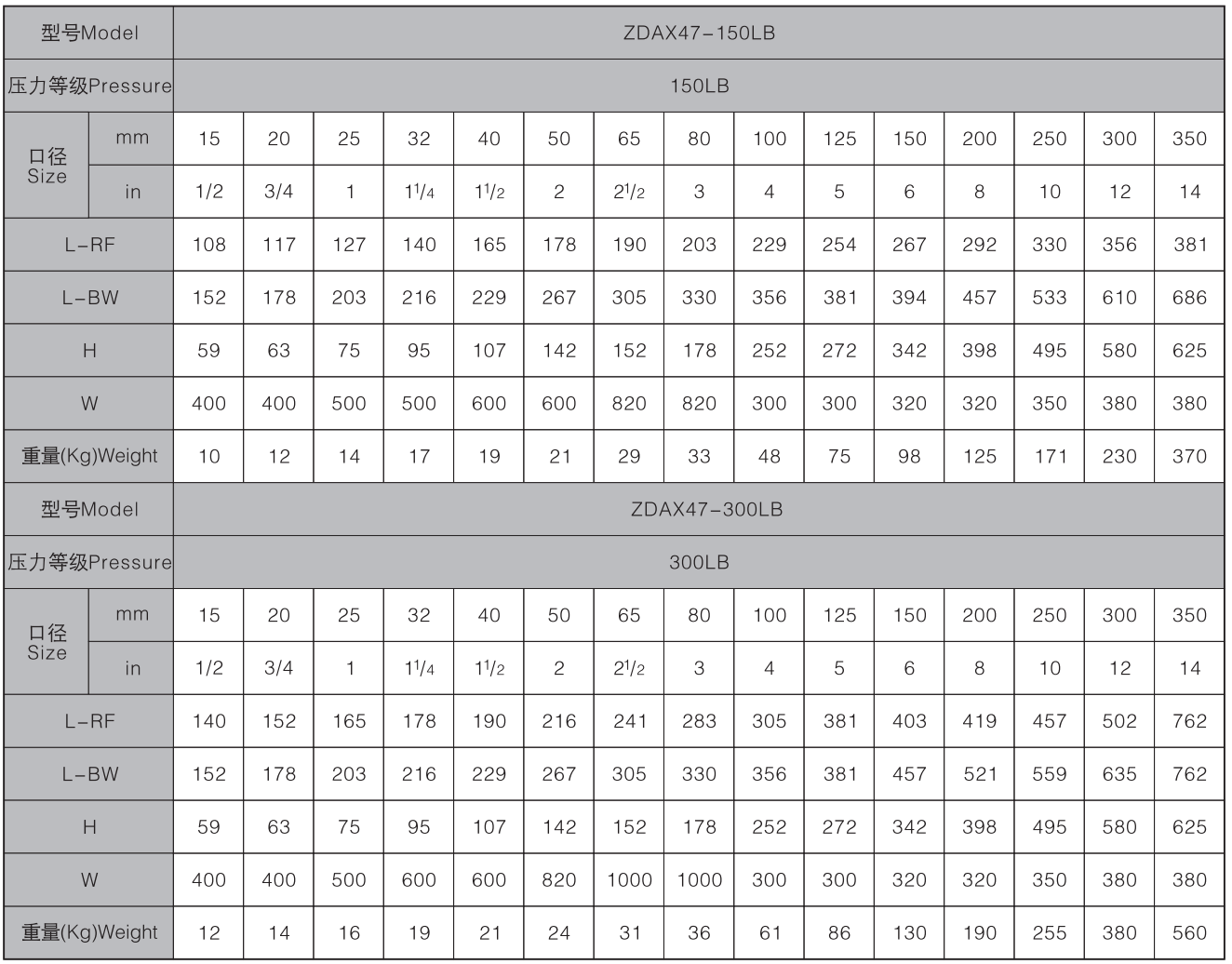

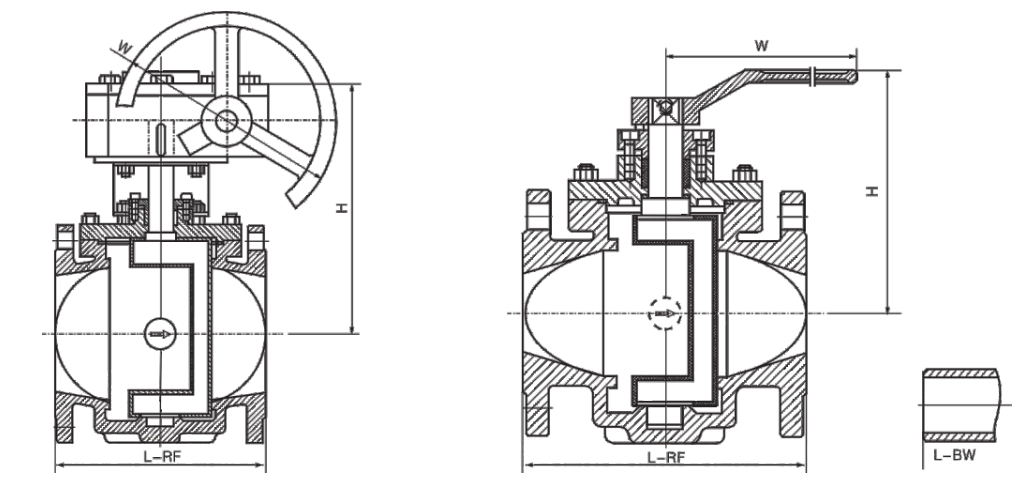

Main dimensions and weight:
Note: 4 inches and above are worm gear operation

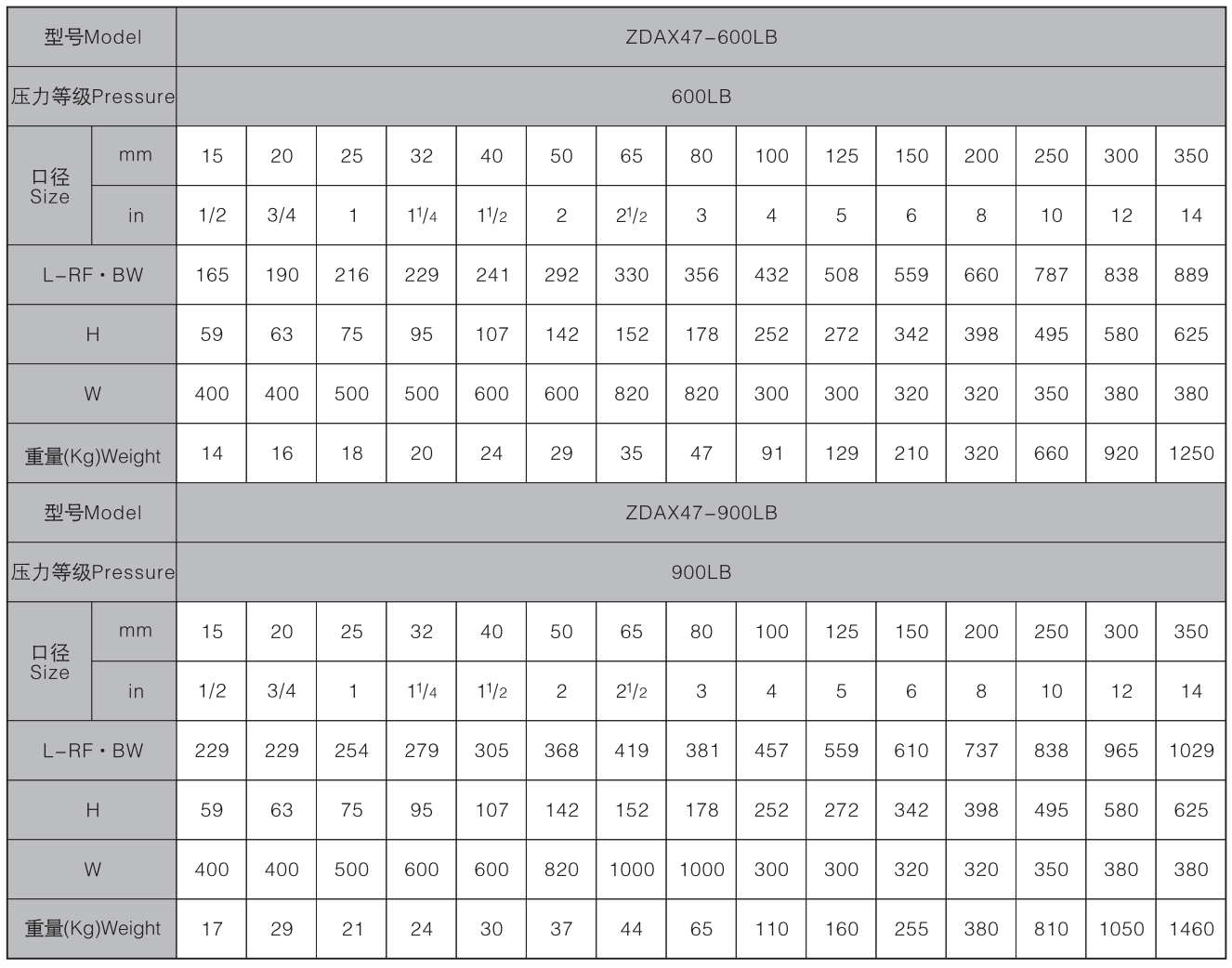

Main dimensions and weight:
Note: 4 inches and above are worm gear operation
