German standard compression soft seal globe valve
Keyword:
- Product Description
-
Product Structure Features:
German standard card sleeve soft seal globe valve is suitable for nominal pressure PN1.6~16MPa, operating temperature -29~180℃ petroleum, chemical, pharmaceutical, fertilizer, power industry and other various working conditions pipelines, to cut off or connect the pipeline medium.
Its main structural features:
1. Reasonable product structure, reliable sealing, excellent performance, beautiful appearance.
2. Its sealing is achieved through the sealing surface around the card sleeve. Unique 360° metal lip edge protection fixed card sleeve.
3. The valve has no cavity for the medium to accumulate.
4. The metal lip edge provides a self-cleaning effect during the rotation of the plug, suitable for viscous and easy-to-scale working conditions.
5. Bidirectional flow, more convenient installation and use.
6. Parts materials and flange dimensions can be reasonably selected according to the actual working conditions or user requirements. Meet the needs of various projects.

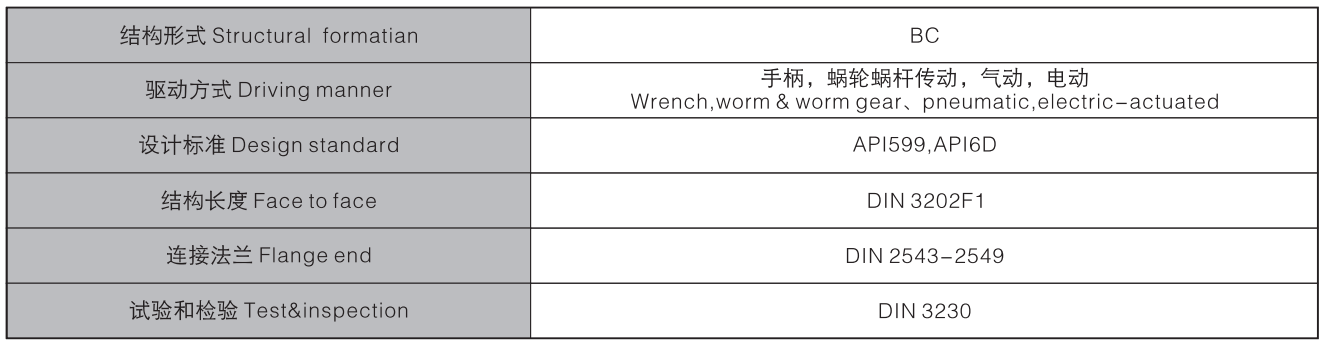

Technical Specifications:
Note: Valve connection flange dimensions can be manufactured according to user requirements.

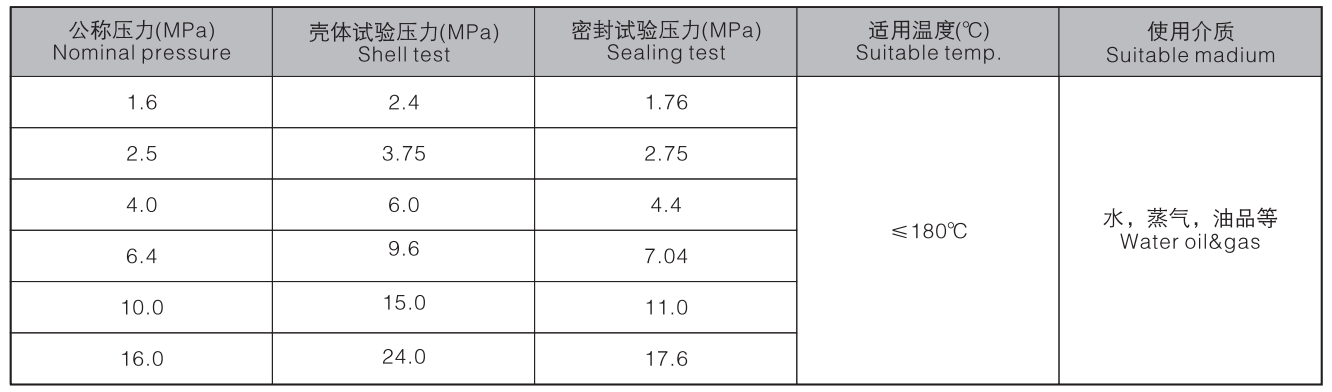

Product Performance Specifications:

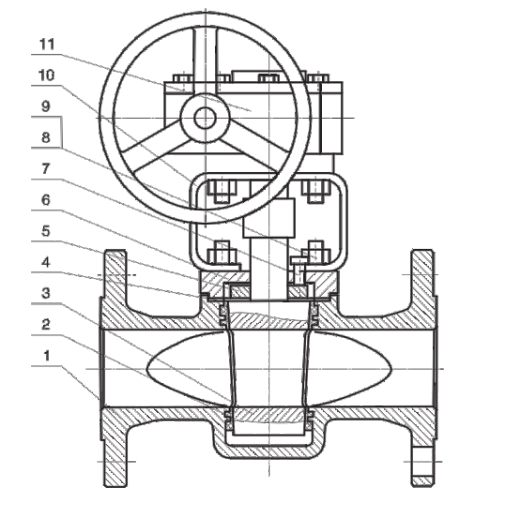

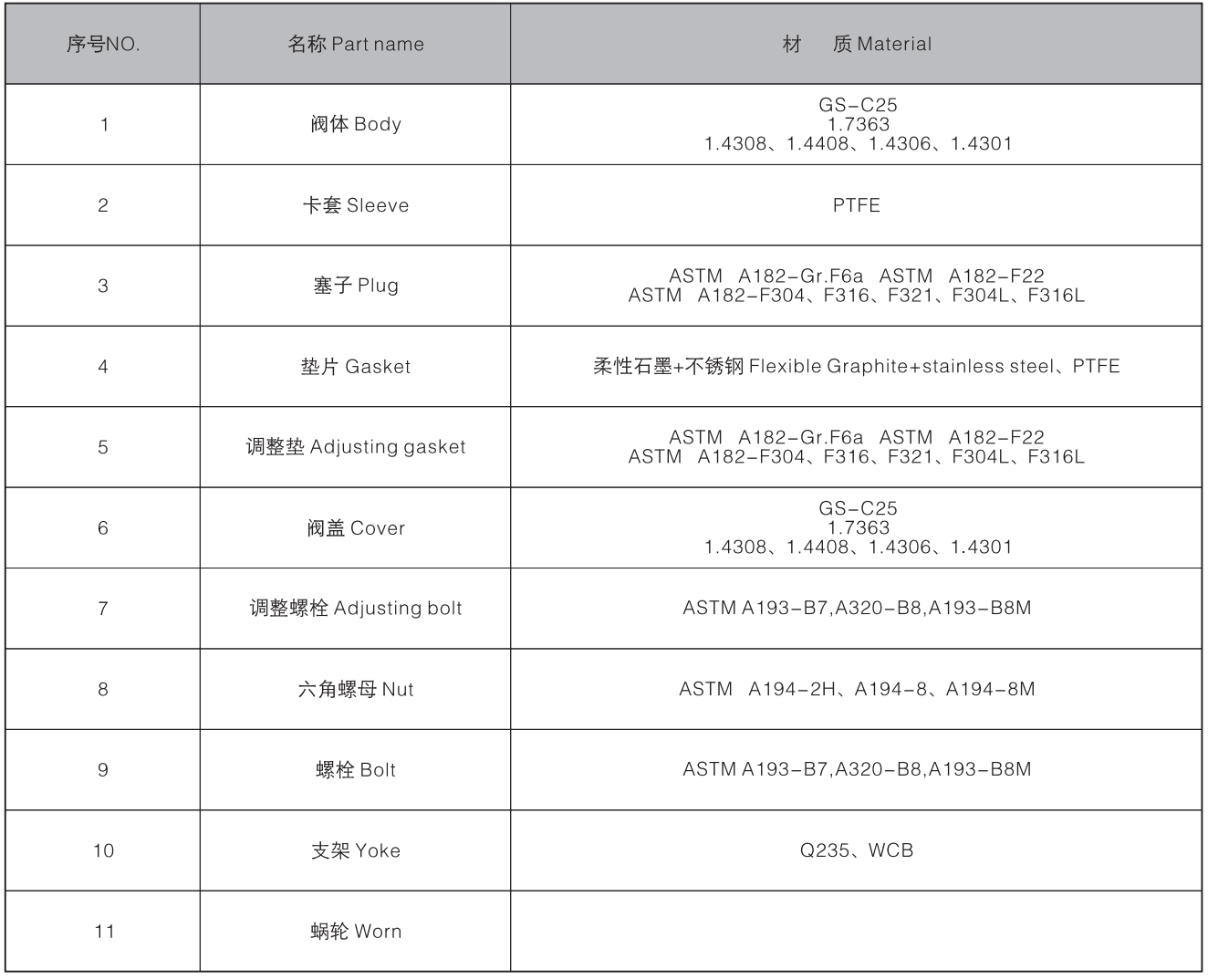

Main Component Materials:

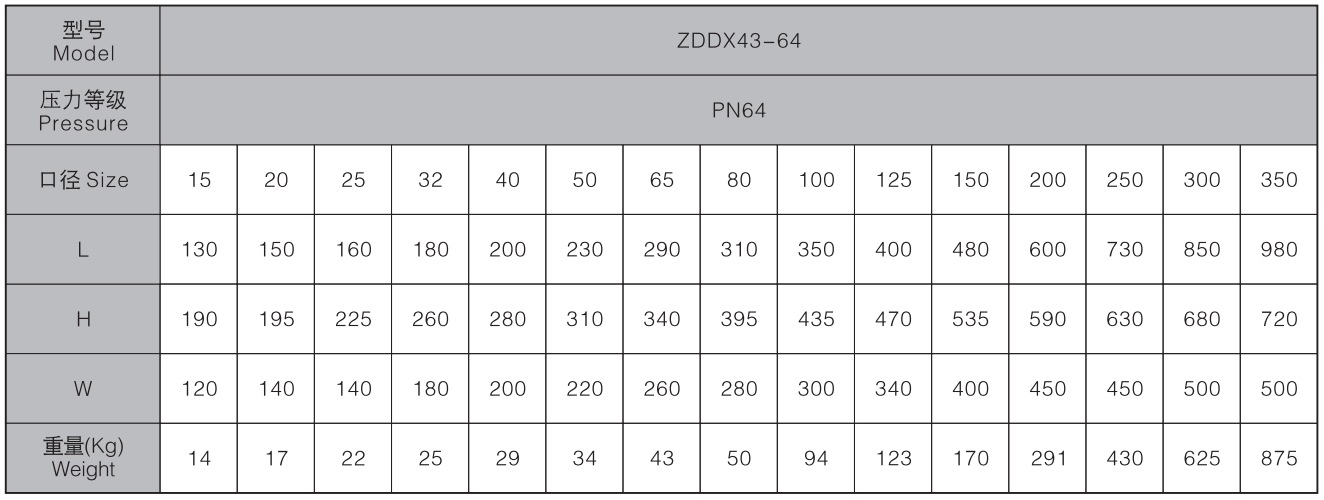

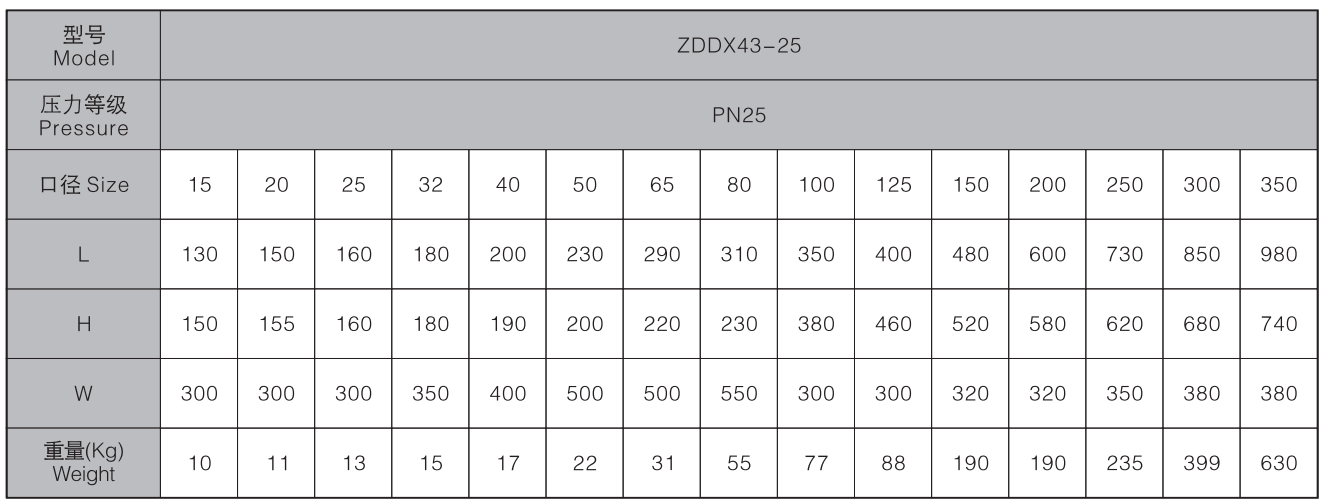

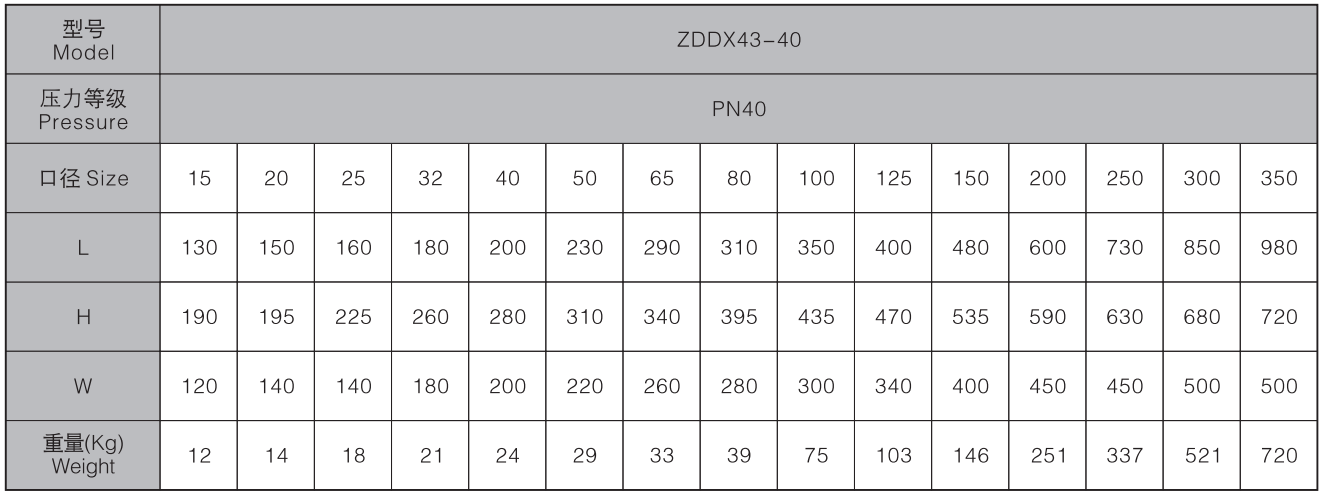

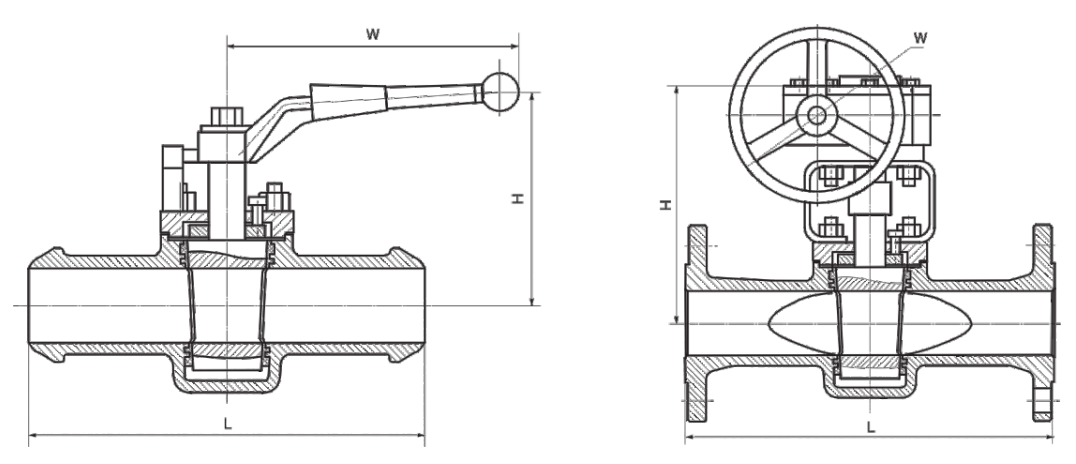

Main Dimensions and Weight:
Note: 4 inches and above are worm gear operation
Note: 4 inches and above are worm gear operation

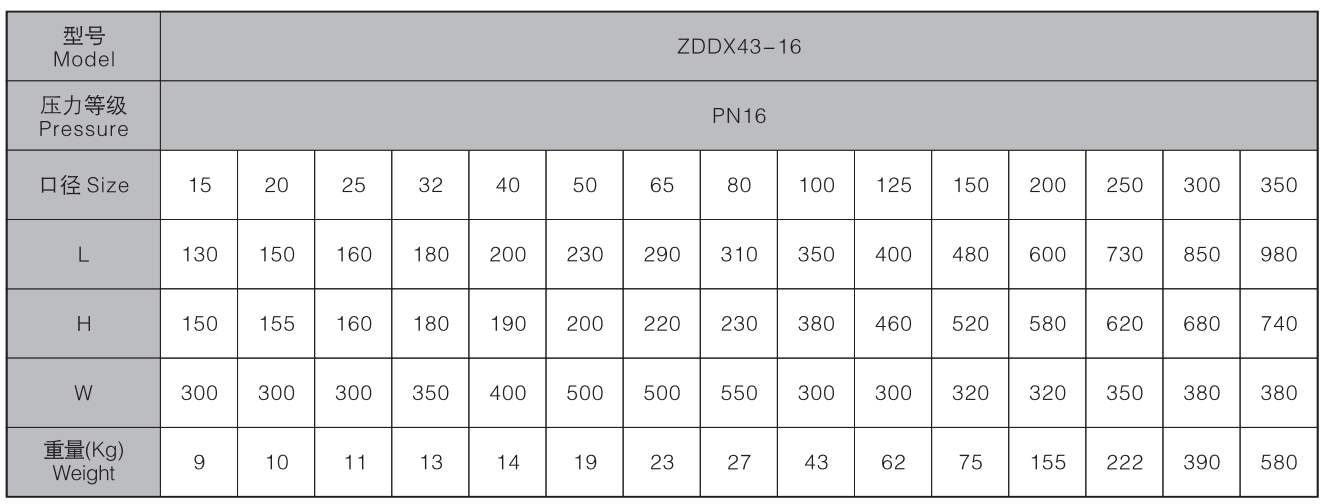

Main Dimensions and Weight:
Note: 4 inches and above are worm gear operation
Note: 4 inches and above are worm gear operation
